High-Solids Crossflow Filters (Dynamos)
Rotary-disc crossflow filtration that handles liquids with very high solids, with no filter aid, filtrate below 1 NTU and up to 95% recovery.
Interactive anatomyTake a look inside the filterSeparate the assemblies and explore how rotary-disc filtration works.Specifications

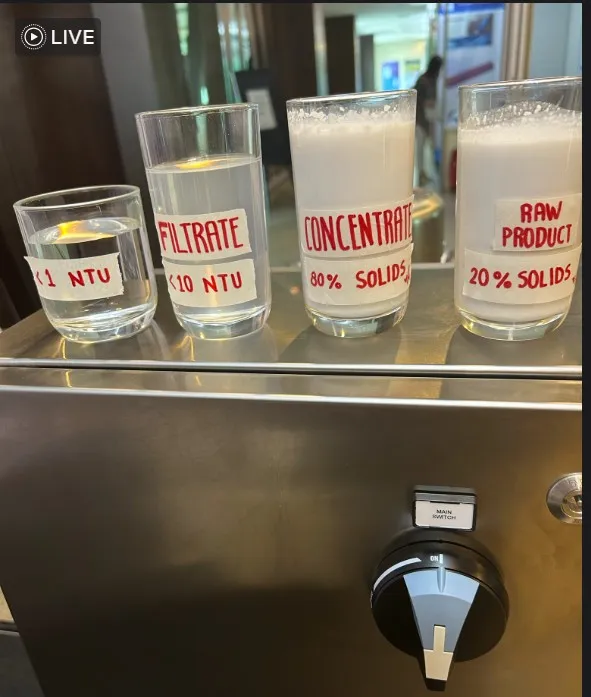

- Filtrate quality
- < 1 NTU
- Filtrate recovery
- Up to 95%
- Retentate solids
- Up to 80% v/v (20 – 25% dry matter)
- Flux
- 25 – 100 L/m²/h
- Cycle length
- Up to 96 h without cleaning
- Module sizes
- 1 – 20 m², and multiples
Typical applications
- Fruit wines, juices, vinegar and soy sauce
- Beer, liqueurs, spirits and alcohol distillates
- Coconut water, milk and whey
- Methyl esters (biodiesel), sugar, starch and chemicals
Downloads
Supplied in partnership with TMCI Padovan (Italy).
Conventional crossflow filtration struggles once solids rise, and the usual alternatives, filter presses and vacuum filters, need filter aid. Dynamos uses rotating discs to keep the membrane surface clean, so it can concentrate solids far beyond normal crossflow limits while still producing a filtrate clear enough to bottle directly.
- No filter aid: an alternative to filter presses or vacuum filters on high-solids products
- No oxygen pick-up, with very limited nitrogen sparging
- No loss of red colour in wines (absorbance at 520 nm)
- Open, fully inspectable self-cleaning discs and a calibrated backwash system
- Very low energy use compared with conventional crossflow
- Compact and modular, from 1 m² to 20 m² and in multiples
See it working
Videos
Related products
Enquire about Crossflow Filters
Tell us what you’re filtering, your flow rate and what you need to remove. We'll recommend equipment, or a pilot test if the answer depends on your material.
